FEATURES

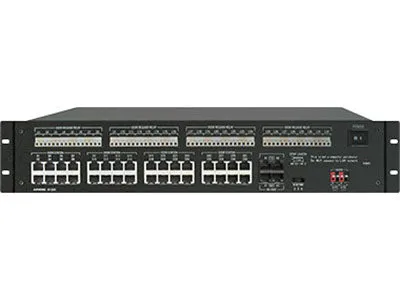

• Wiring hub for AX Series system using Cat-5e
• Two 24V DC power supply input terminals
• Rack mountable

SPECS
Door Release: Programmable dry contact, 24V AC/DC 500mA (use RY-24L for larger contact rating)
Mounting: 19" EIA rack (2U) or wall mount

Wire Type:
Between Door/Sub Station and Add-On Exchange Unit: Cat-5e
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield – use Aiphone #821802

Distance:
Door/Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980'
Central Exchange Unit to Add-On Central Exchange Unit: 16'
Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG), 33'(18AWG)
