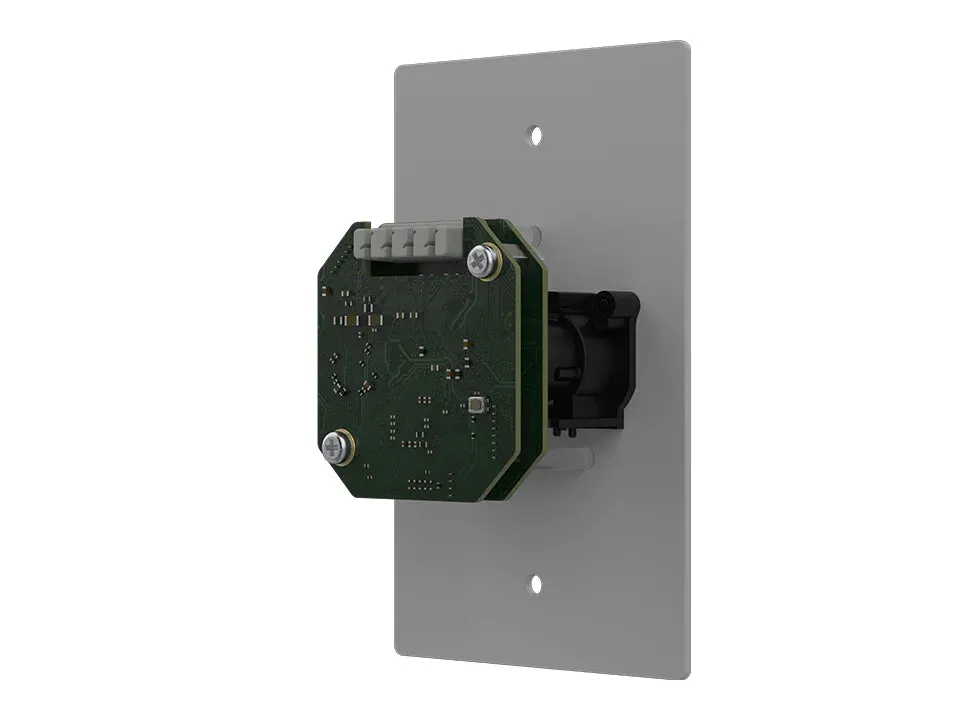

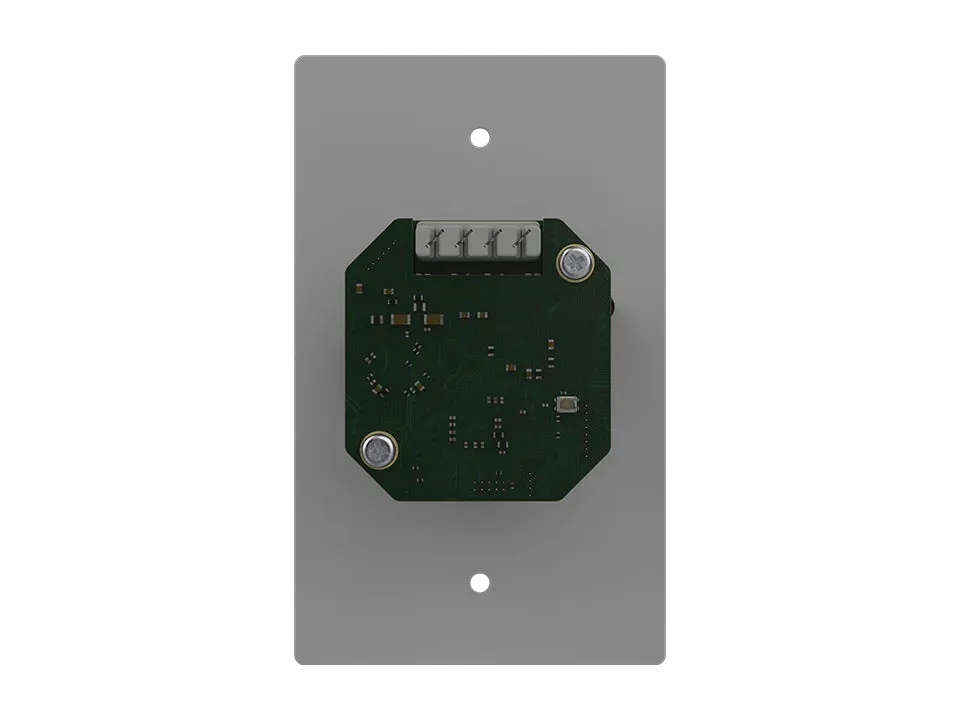

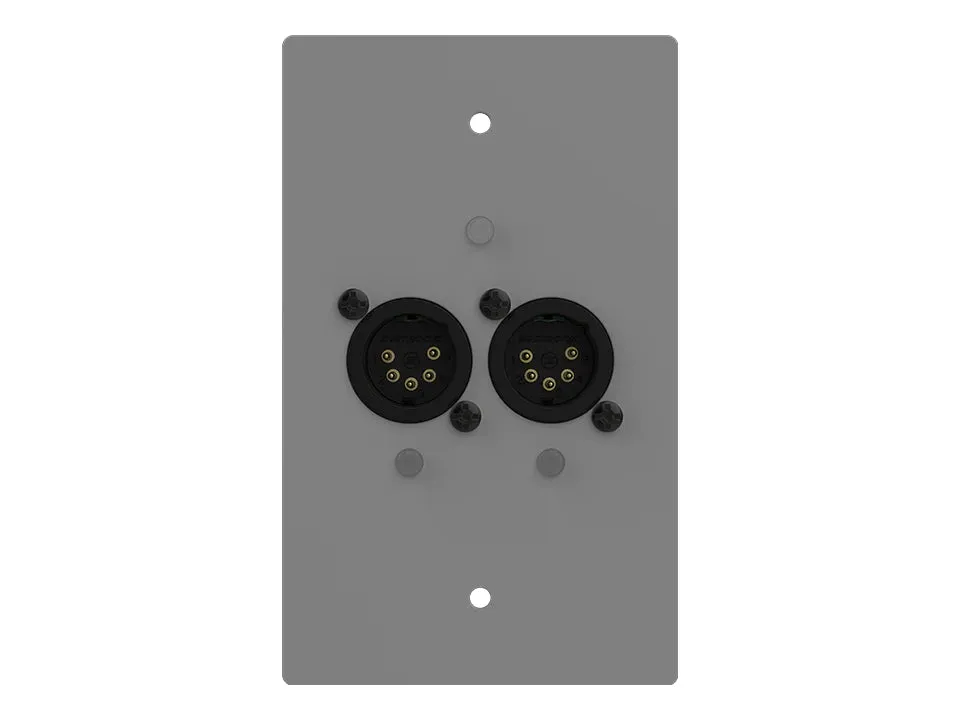

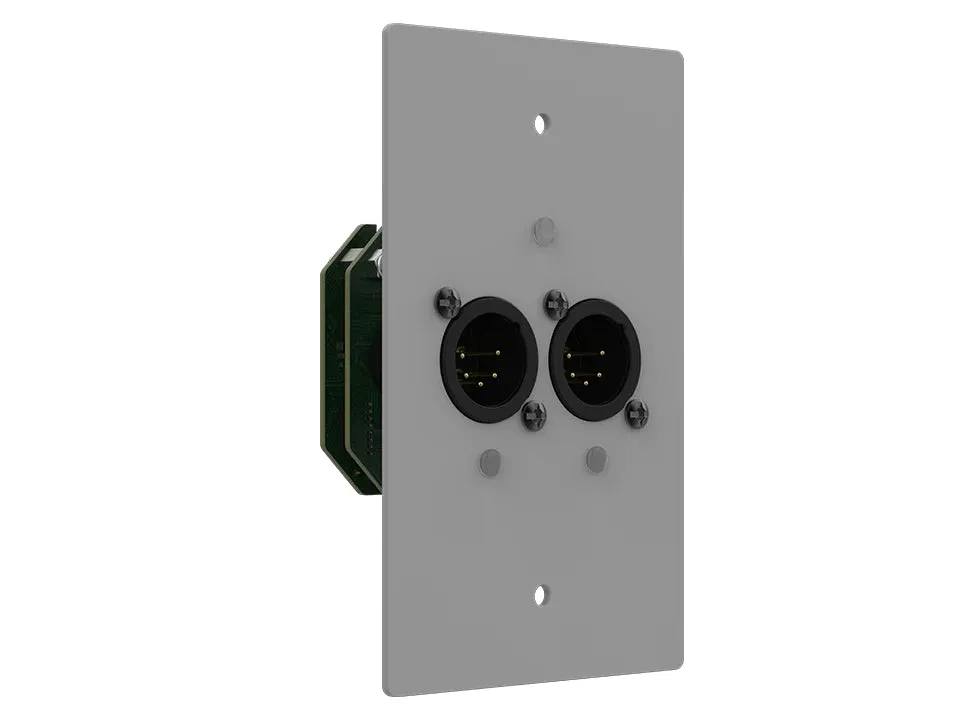

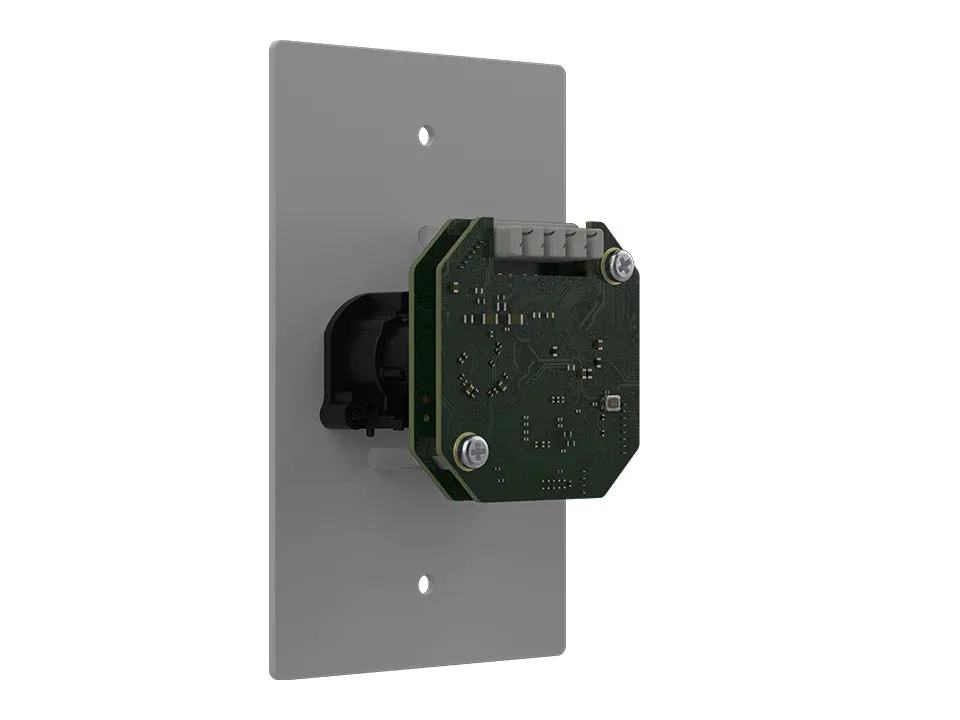

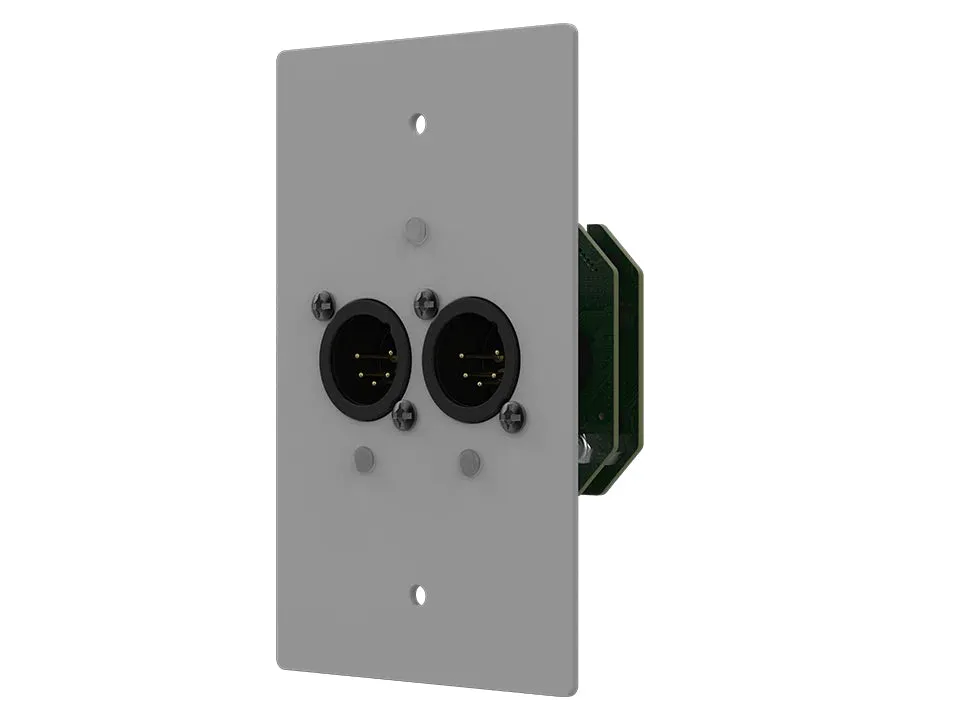

GeNetix Wall Mount Node 2 is a two-port wall mount PoE powered node, available to fit into standard single gang EU/US & UK backboxes. Available with either male or female physical RDM Direct DMX ports, both versions support both DMX Input or Output. GeNetix Wall Mount Node 2 is ideal for any fixed installation, supporting Art-Net and sACN and configurable from ChamSys consoles, via its in-built web server or over Art-Net.

Features

• 2 RDM DMX Ports supporting Input and Output
• Available with either Male or Female DMX Ports
• Supports Art-Net & sACN
• Webserver for remote configuration
• PoE Powered
• Supplied with interchangeable Black or White faceplates
• Available to fit US,UK,EU Standard Single Gang Back Box fit
• Does not unlock ‘demo mode’ on MagicQ PC Systems

Specifications

• Hardware
  • RDM Direct DMX Ports: 2
  • Network Ports: 1 (punchdown connector)
  • PoE Powered: Yes
  • Available in variants to fit U.K., E.U. & U.S.A single gang box boxes.
  • Available with either Male or Female DMX Ports
  • Supplied with interchangeable Black or White faceplates
• Software
  • Art-Net/sACN: Yes
  • ChamNet Support: Yes
  • Configurable DMX Timings: Yes
  • Web Server: Yes
  • DMX Redundancy Support: Yes
  • Unlock's ‘demo mode’ MagicQ PC Systems: No
• Dimensions (HxWxD): 4.53 x 2.76 x 1.48 inch (115 x 70 x 37.5 mm)
• Weight: 0.33 lb (0.15 kg)

What's Included

• Black and White Face Plates
