Product Details
＋

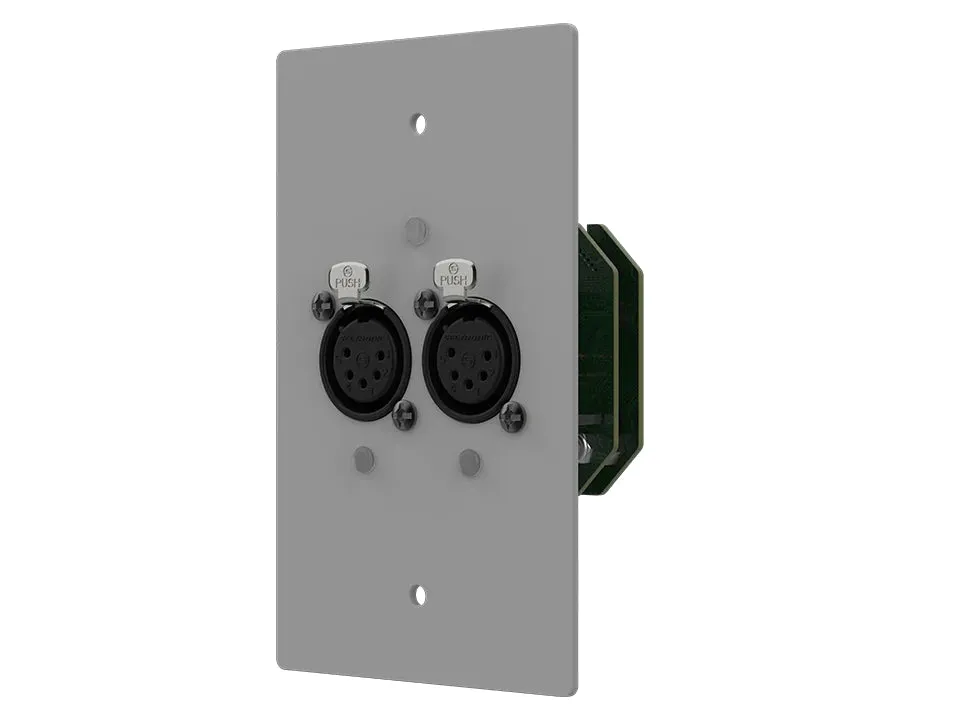

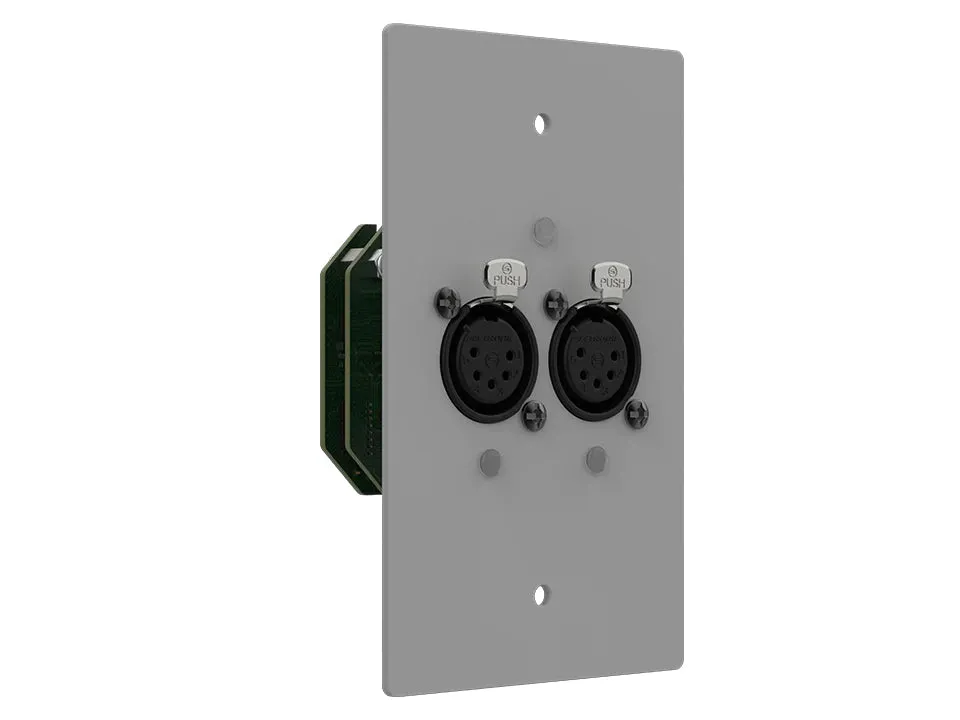

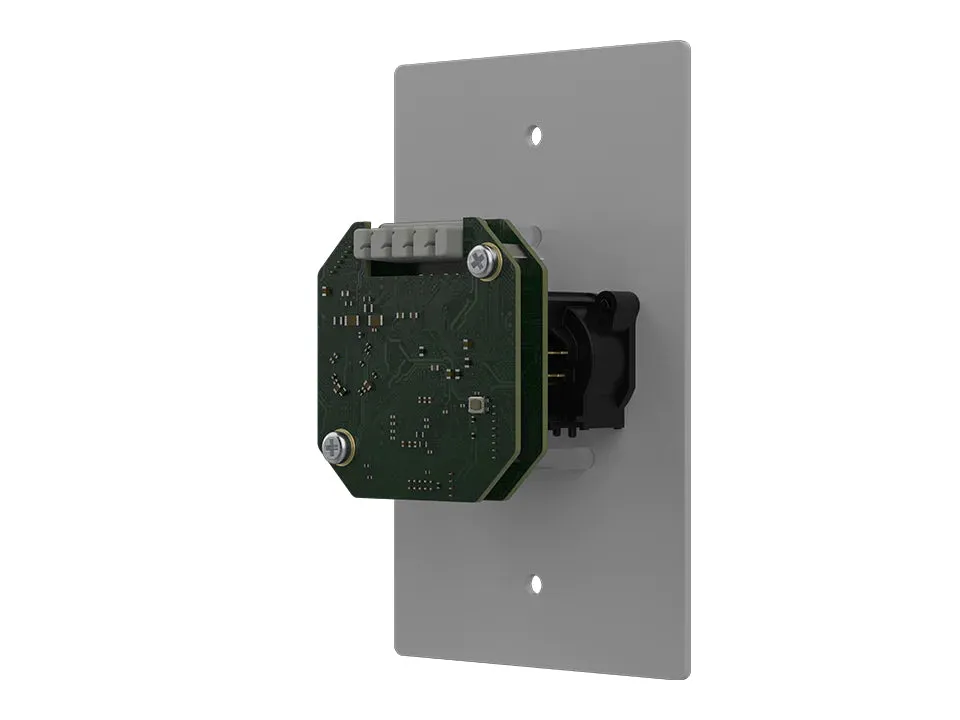

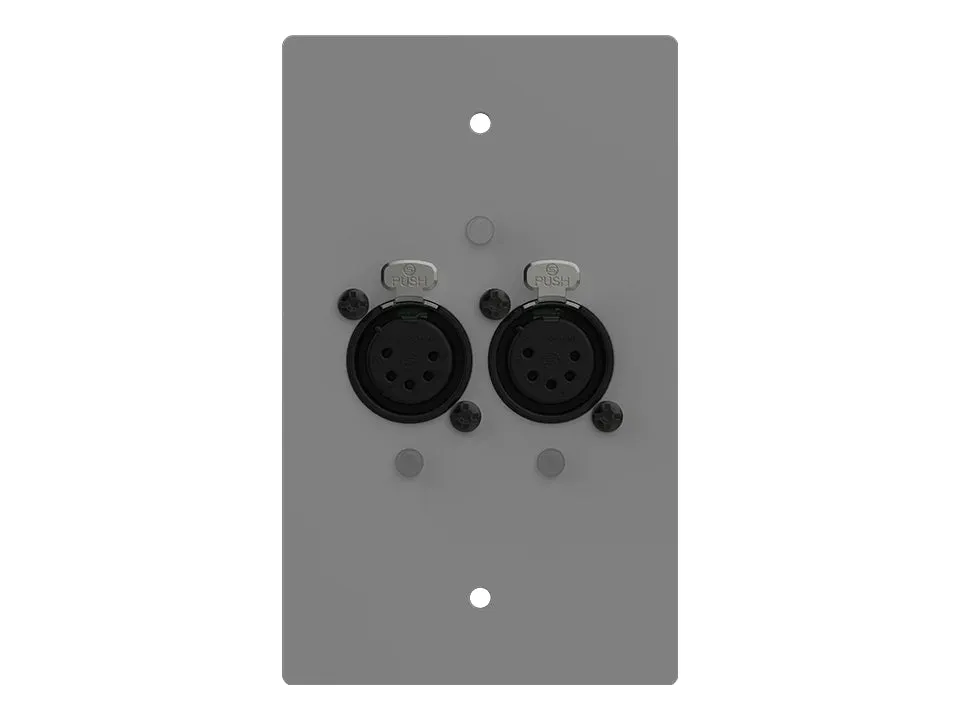

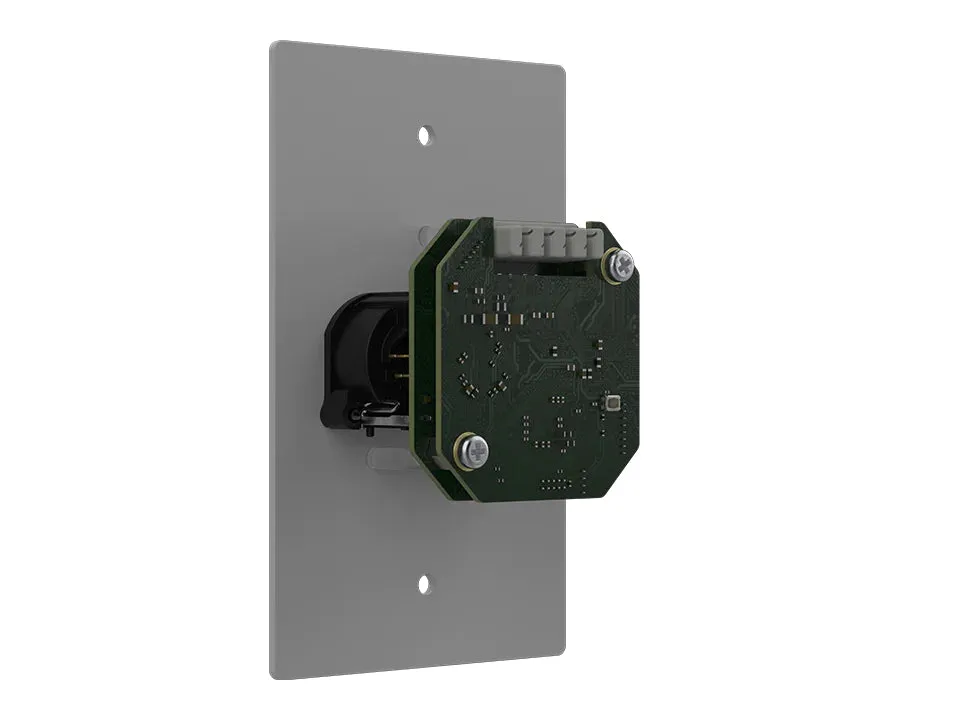

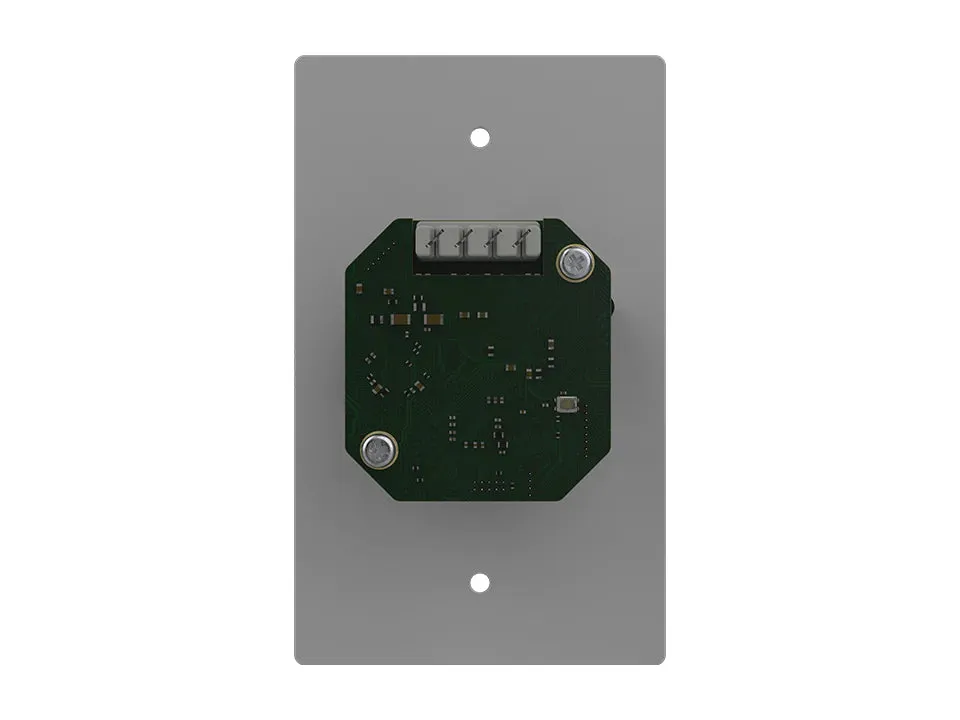

GeNetix Wall Mount Node 2 is a two-port wall mount PoE powered node, available to fit into standard single gang EU/US & UK backboxes. Available with either male or female physical RDM Direct DMX ports, both versions support both DMX Input or Output. GeNetix Wall Mount Node 2 is ideal for any fixed installation, supporting Art-Net and sACN and configurable from ChamSys consoles, via its in-built web server or over Art-Net.
Features
- 2 RDM DMX Ports supporting Input and Output
- Available with either Male or Female DMX Ports
- Supports Art-Net & sACN
- Webserver for remote configuration
- PoE Powered
- Supplied with interchangeable Black or White faceplates
- Available to fit US,UK,EU Standard Single Gang Back Box fit
- Does not unlock ‘demo mode’ on MagicQ PC Systems
Specifications
Hardware- RDM Direct DMX Ports: 2
- Network Ports: 1 (punchdown connector)
- PoE Powered: Yes
- Available in variants to fit U.K., E.U. & U.S.A single gang box boxes.
- Available with either Male or Female DMX Ports
- Supplied with interchangeable Black or White faceplates
- Art-Net/sACN: Yes
- ChamNet Support: Yes
- Configurable DMX Timings: Yes
- Web Server: Yes
- DMX Redundancy Support: Yes
- Unlock's ‘demo mode’ MagicQ PC Systems: No
Weight: 0.33 lb (0.15 kg)
What's Included
- Black and White Face Plates
