Product Details
＋
The BT30 ATC CNC Spindle is a high-quality and versatile tool designed for use in automated machining systems. It is specifically engineered to deliver precision and efficiency in various industrial applications. The BT30 ATC CNC Spindle, along with its components, offers exceptional performance, durability, and ease of use, making it an ideal choice for professionals in the manufacturing and machining industry.
High Precision: The BT30 ATC CNC Spindle provides precise rotational control, resulting in accurate machining and consistent part quality. It allows for tight tolerances and intricate designs, ensuring the production of high-quality components.
High Precision: The BT30 ATC CNC Spindle provides precise rotational control, resulting in accurate machining and consistent part quality. It allows for tight tolerances and intricate designs, ensuring the production of high-quality components.
- Quick Tool Changes: BT30 ATC CNC Spindle enables rapid tool swapping, minimizing setup time and increasing productivity.
- Versatility: Supports a wide range of cutting tools, allowing for various machining operations, including milling, drilling, and routing.
- Robust Construction: Built with durable materials and precision engineering
- Enhanced Workflow: Improves workflow efficiency by reducing manual interventions
- User-Friendly Interface: An intuitive interface that facilitates easy operation and monitoring.
Specifications:
- Maximum speed: 6000/8000 (rpm)
- MaxTemperature <25graus Celsius
- Dynamic equilibrium <0.4 (mg)
- Maximum noise <78 (dB)
- Vibration <0.003 (mm)

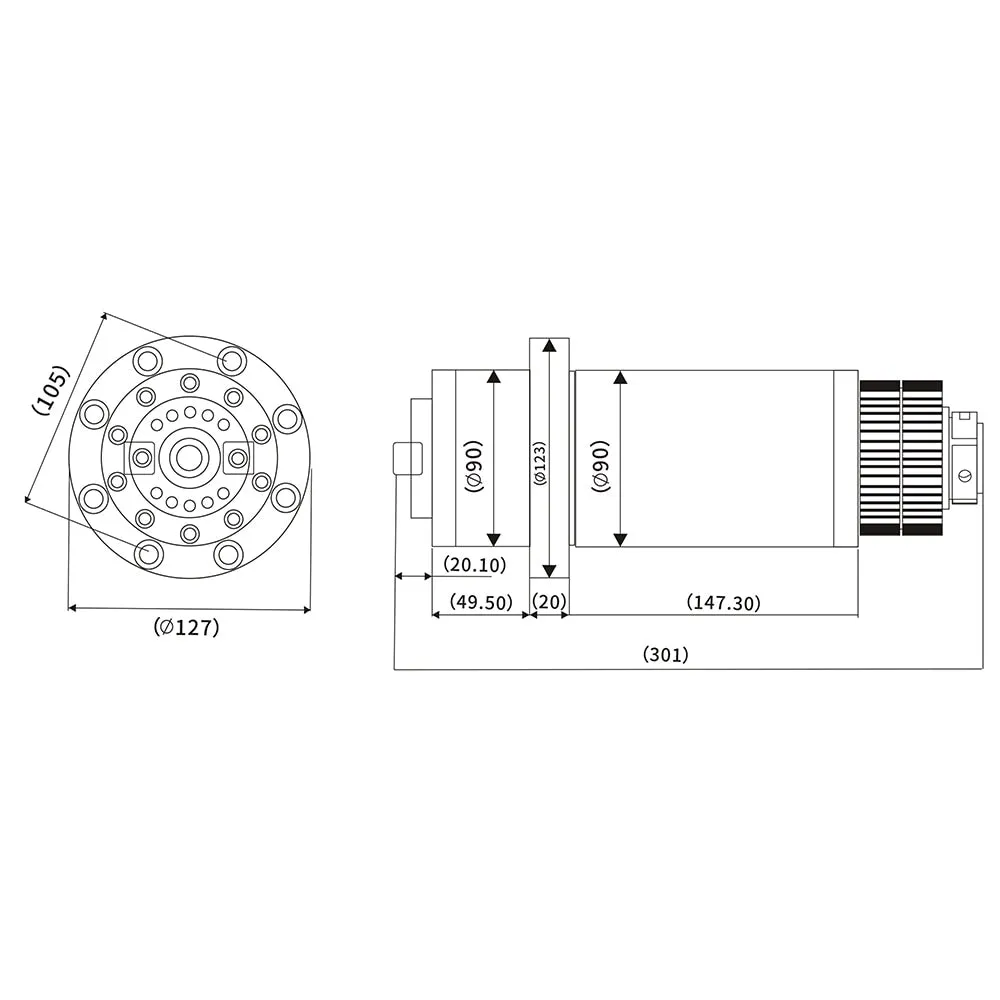

- Outside diameter: 90 mm

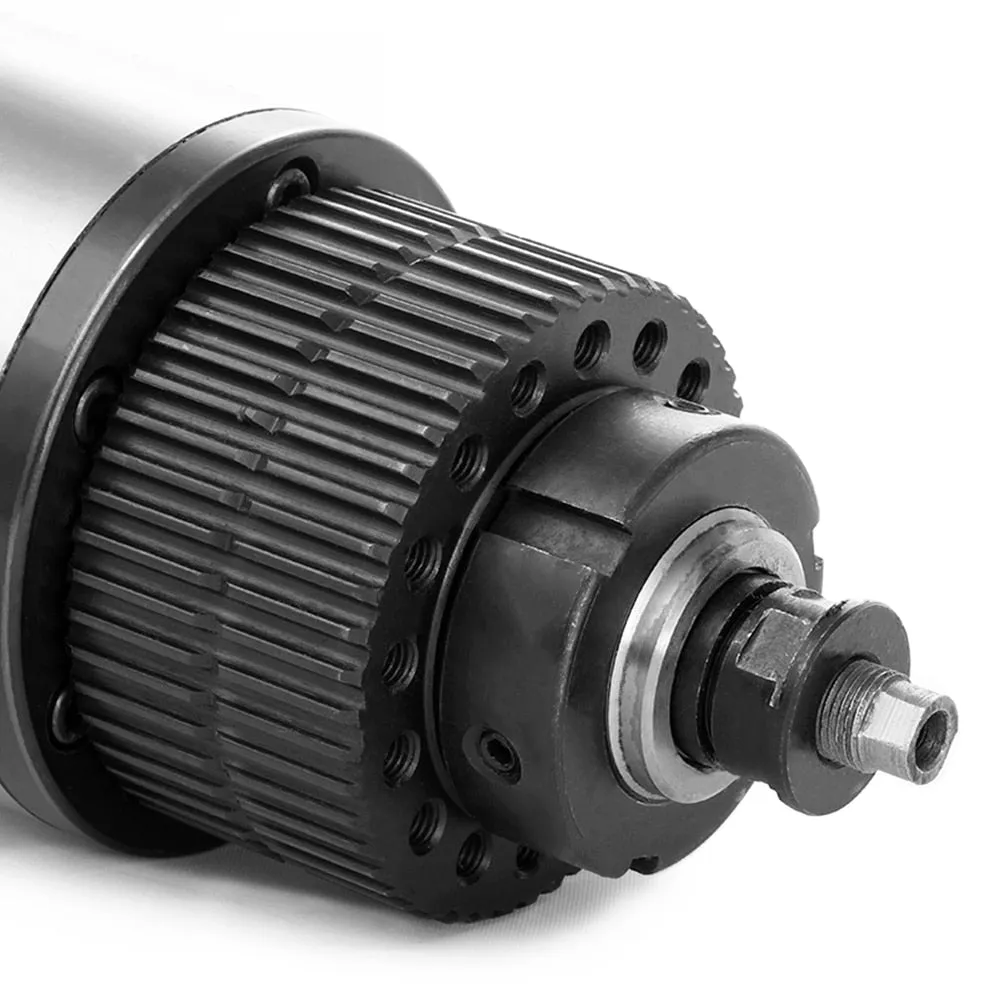

- Pulley: HTD-5M-50 Theeth
- Belt：5m
- Pull stud travel: 4.5mm
- Force of Loose holder : 280kgf
