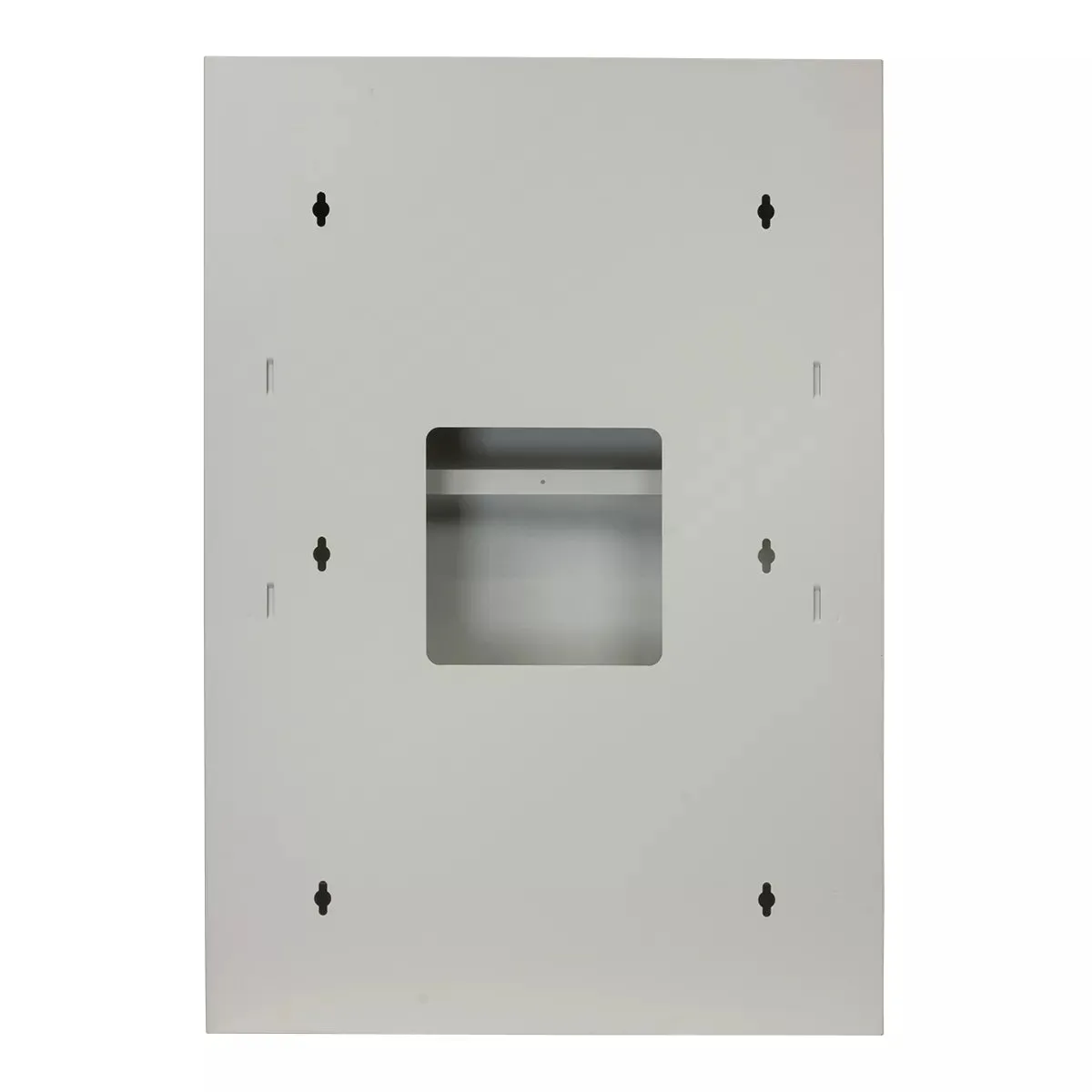

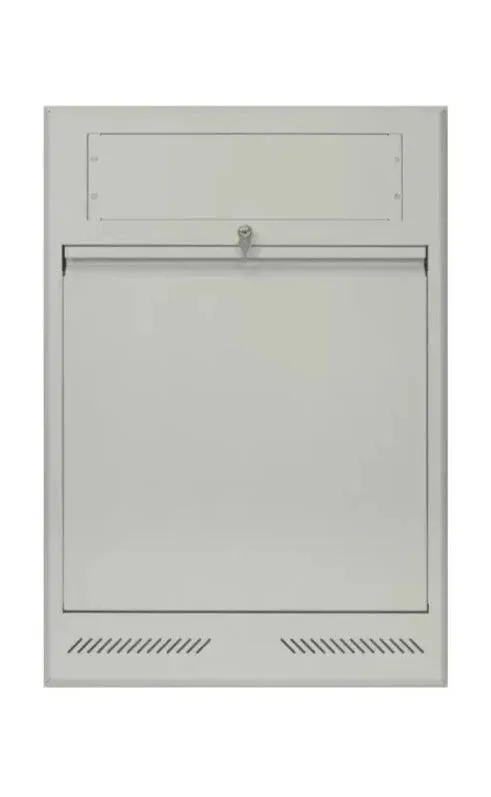

This model is a low profile, wall-mount rack with tilt-open front. It's ideal for amplifiers, small mixers, PA systems or consumer electronics. The 2U x 20-inch main compartment stores equipment vertically. Lift the integral handle to manually lower the bay to a positive stop for equipment servicing or operation. Remove the blank top panel to utilize the 3U pocket and add a control panel. Includes electrical box and DIN rail in base.

Features

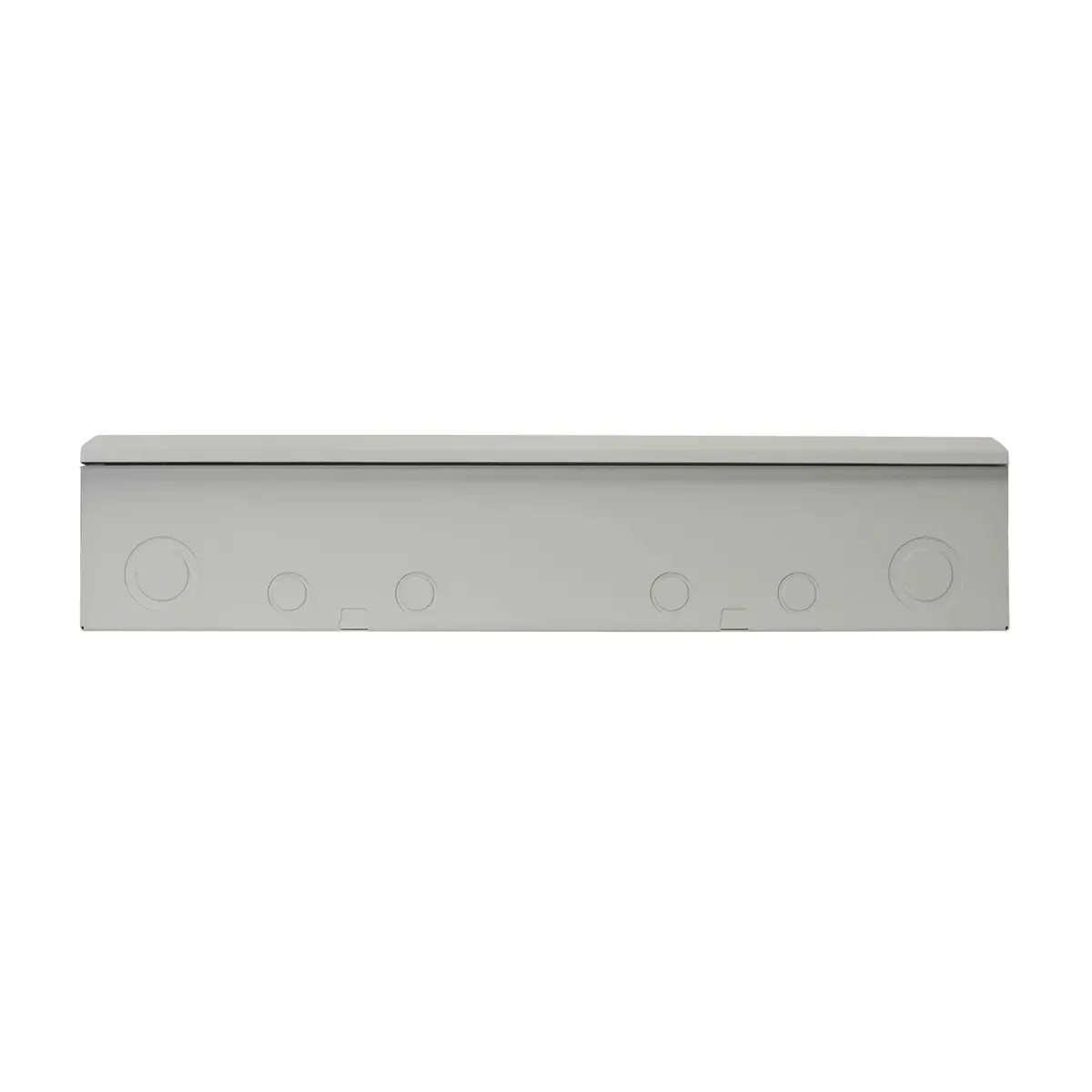

• Surface-mount wall rack features steel construction with beveled edges and Network Grey finish, vents in front and base, and compound knockouts for cables (top and base).
• Main compartment tilts open 12 degrees for equipment operation, 105 degrees for servicing.
• Includes integral handle, key lock, 1 pair adj. mounting rails, and a clamping bracket to secure equipment.
• Factory-installed E.O. box and DIN rail in base.
• Removable 3U top panel for accessories.
• Pilot Point screws with captive washers
• Load capacity 100 lbs.

Specifications

• Rack Space:  3U upper bay (horizontal) and 2U lower bay (vertical)
• Height:  35.00 in.
• Width:  24.50 in.
• Depth:  5.13 in. (usable 18 in. max. first space, 20 in. ma. second space)
