M140WALLMOUNT16B Wall Mount 16 In Off-Trackhanger Black
ALL BULBS will beat "ALL" competitors pricing! ….... Call 516.766.2266
M140WALLMOUNT16B Wall Mount 16 In Off-Trackhanger Black

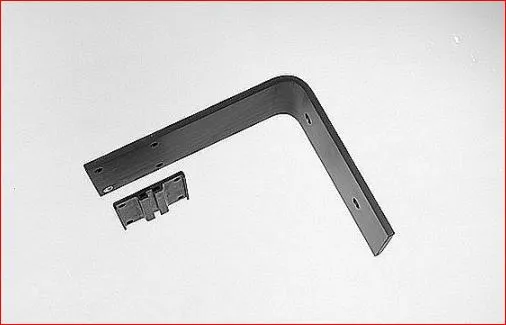

Wall Hanging Bracket for single M140 Track, with two 9/16" holes for mounting to wall. Four 3/8 inch bolt holes are used to mount the included Trackhanger short 9 inches off of the wall.
Material is 3/8 inch by 4 inch by 20 inch 6061T-6 aluminum bent 9 inch up from wall bolt end with 2 inch diameter punch. 16" up from wall bolt is also available.
Download (PDF)
- Working Load Limit
-
50 lbs
- Dimensions
-
3/8″ × 4″ × 20″
- Weight
-
3.1 lbs. – 9", 4.65 lbs – 16"
- Case Quantities
-
Each
