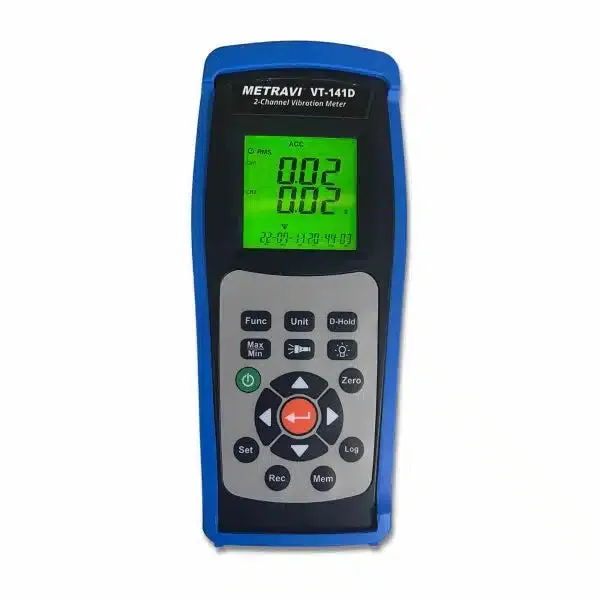

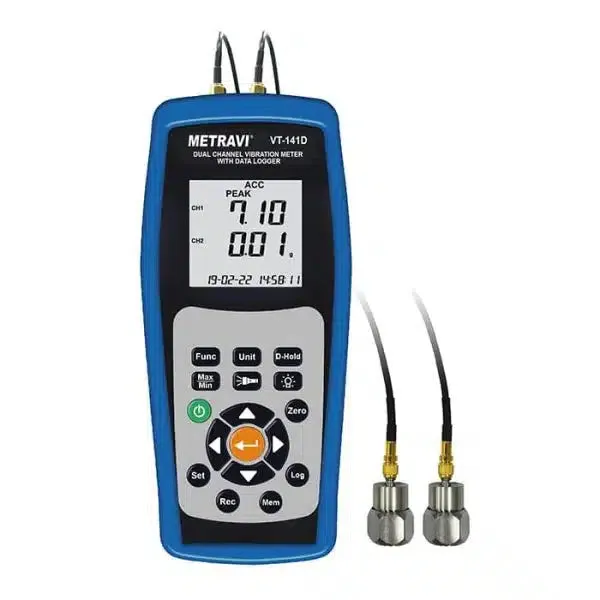

The Metravi VT-141D Dual Channel Vibration Meter is a high-performance, versatile tool designed to measure acceleration, velocity, and displacement across a wide frequency range of 10Hz to 5kHz. Equipped with a vibration sensor and magnetic adapter, it ensures accurate measurements with options for both long and short probe heads. This meter is ideal for professionals needing precise readings for machinery diagnostics and monitoring, making it perfect for industrial maintenance and quality control. It meets the ISO 2954-2012 standard for measurement accuracy, making it reliable in diverse applications.

Key Features:

• Dual Channel Measurement: Simultaneously measures acceleration, velocity, and displacement.
• Wide Frequency Range: Supports 10Hz to 5kHz, with low range (10Hz~1kHz) compliant with ISO 2954-2012 standards.
• Vibration Sensor: Comes with a magnetic adapter and a 1.2M (47.2 inch) extended cable for ease of use in various environments.
• Data Logging: Can store up to 15,000 records, providing valuable historical data for analysis.
• High Sensitivity Probe Head: Ensures accurate readings even in challenging conditions.
• Data Recall & MAX/MIN Recording: Allows users to record, recall, and analyze minimum and maximum readings.
• User-Friendly Design: Features auto power-off with disable function, zero function for offset adjustment, and a backlit LCD display for clear viewing.
• USB Interface: Easy data transfer to PCs for further analysis and documentation.

Specifications:

• Frequency Range: 10Hz to 5kHz
• Acceleration Range: 0.5 to 199.9 m/s²
• Velocity Range: 0.5 to 199.9 mm/s
• Displacement Range: 0.005 to 1.999 mm
• Accuracy: ±5%
• Display: 1999 dots backlit LCD
• Power Source: Operates on 6 AA alkaline batteries and mains power.
• Battery Life: Approximately 80 hours (alkaline battery).
• Certifications: ISO 2954-2012 (10Hz ~ 1kHz range).
• Resolution: Multiple units including 0.1mm/s, 0.001 inch, 0.01cm/s, 0.1 m/s², and more.

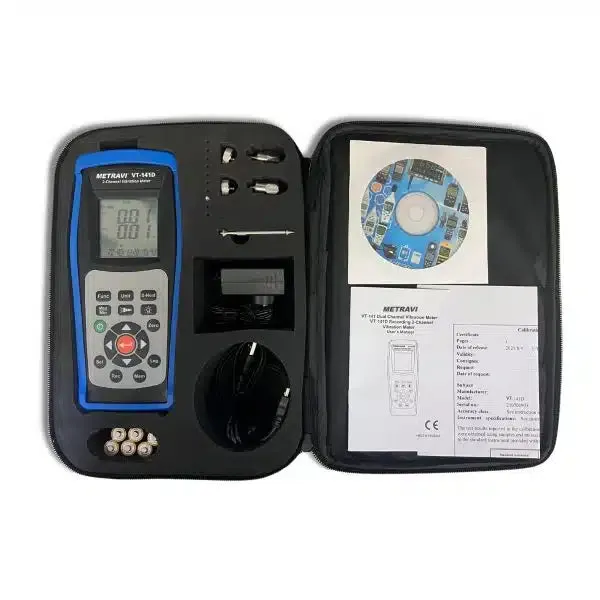

Box Including:

• VT-141D Vibration Meter with vibration sensor and magnetic adapter.
• USB cable for data transfer.
• User Manual for easy setup and usage.
• Carrying Case for convenient transport.

Applications:

The Metravi VT-141D is ideal for:

• Industrial Equipment Maintenance: Ensuring smooth operation by monitoring vibration levels.
• Quality Control: Verifying compliance with vibration standards during production.
• Machinery Diagnostics: Identifying wear and tear or potential failure in motors, pumps, and other rotating equipment.
• Research and Development: Collecting data for analysis in vibration testing and diagnostics.

With its dual-channel capability and extensive data logging, the VT-141D is a reliable companion for professionals seeking accurate vibration measurements and insights into equipment health.
