• Diaphragm design prevents high-pressure damage often caused by city water systems.
• Reduces mains water pressure to 65psi.
• Leak-tight, stress and crack-resistant while surpassing all check valve code requirements.
• Include a check valve.
• 3/4" NPT (F) inlet suits 45335 3/4" NPT (M) x snap-on tail.
• 1/2" NPSM - Male outlet.

Part Nos.    232140, 232141, 232142,
Length        117mm
Width         117mm
Mount Screws  4mm r/h
Mount         Wall Mount
Pressure      65PSI
Recess Depth 120mm
Recess Cut Out Dia. 88mm

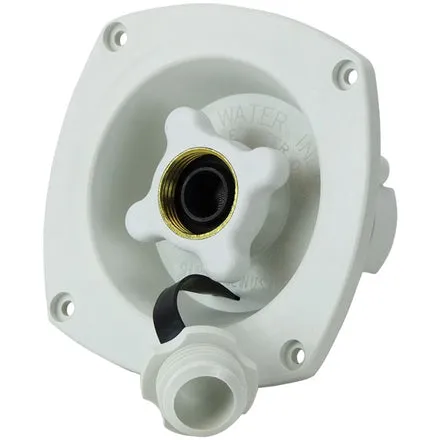

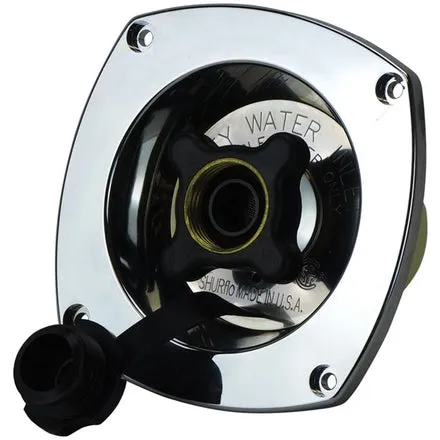

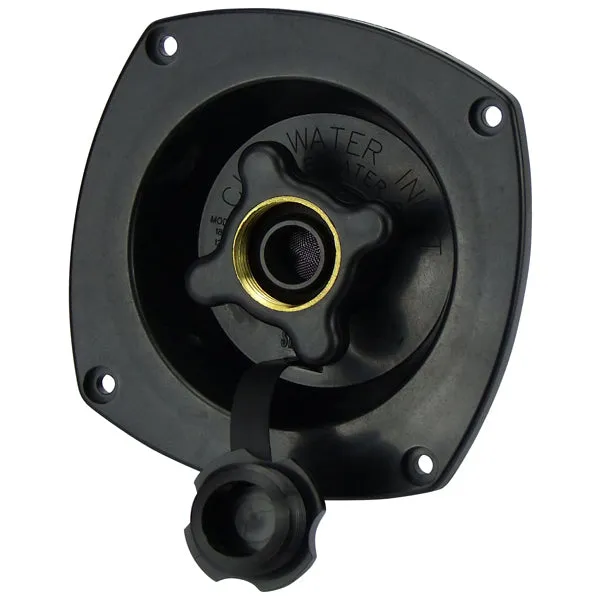

Colours         Gel White, Black, Chrome
