Features:

• Frequency range: 9 kHz - 26.5 GHz
• Resolution bandwidth (RBW): 1 Hz-10 MHz, in 1-3-10 sequence
• -165 dBm/Hz Displayed Average Noise Level (Typ.)
• -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
• Real time spectrum analysis (option SSA5000-RTA1)
• 25/40 MHz real time spectrum analysis BW (40 MHz via option SSA5000-B40)
• Channel power, ACPR, OBW, Harmonic, TOI measurements and more (option SSA5000-AMK)
• 12.1-inch multi-touch screen
• Web Browser Remote Control on PC and Mobile Terminals and File Operation
• OCXO option must be installed at factory (option 10M_OCXO_L)

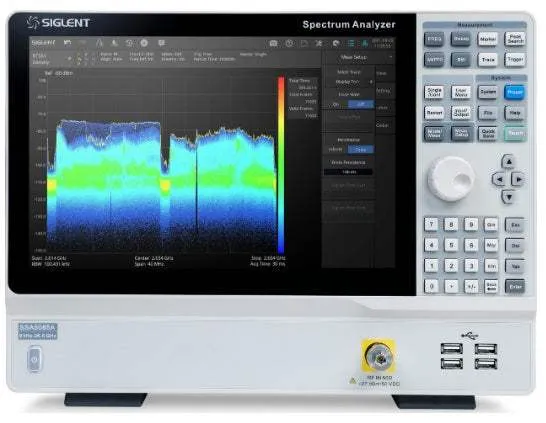

SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensional data displays, as well as advanced triggering to solve modern RF spectrum challenges, including channel power measurement, hopping frequency, conflict channel, and spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.

*The image is for reference only. See product specification for details.
